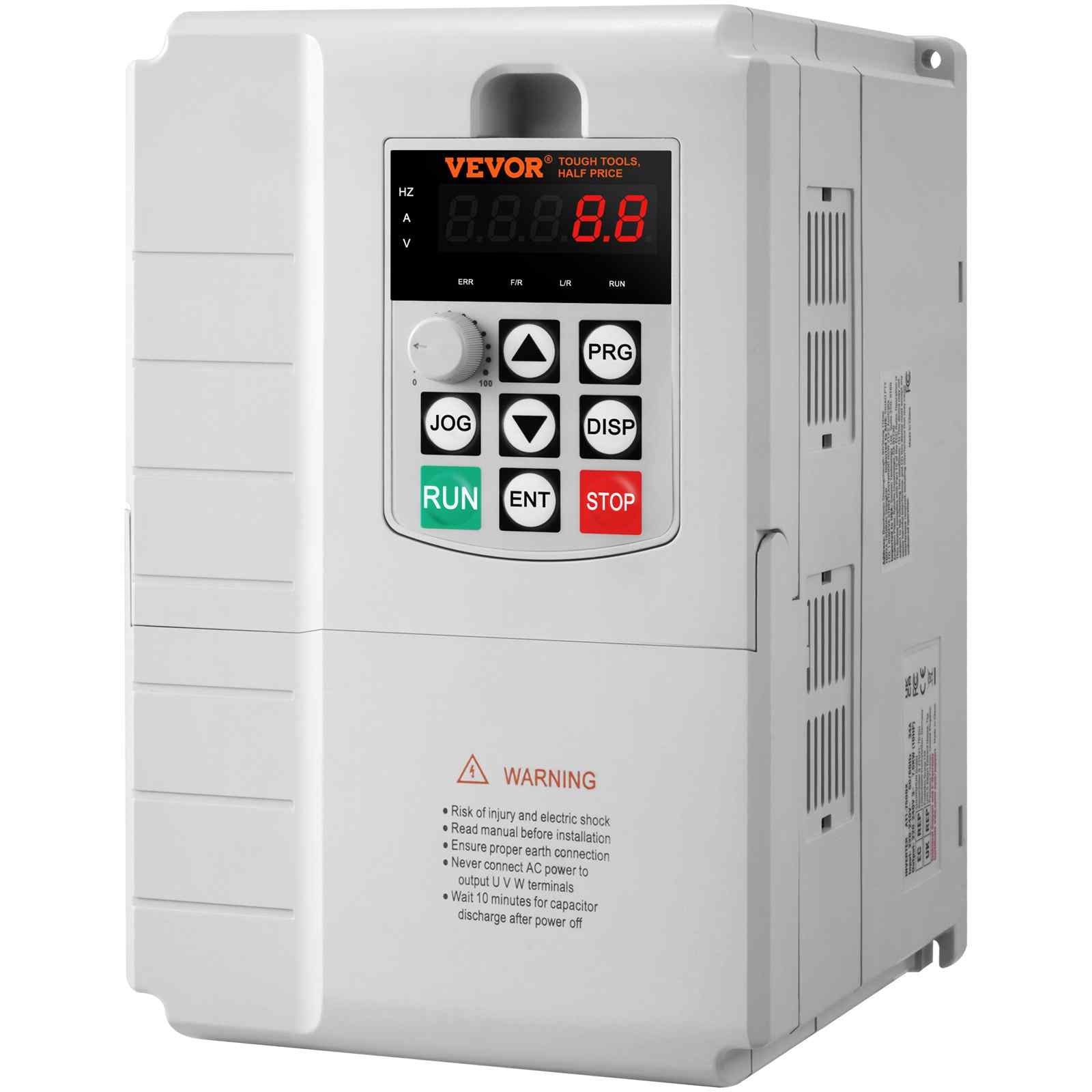

VFD 7.5KW, 34A, 10HP Variable Frequency Drive for 3-Phase Motor Speed Control
Wide-Range Variable Frequency Speed Control - For Stable Motor Start and Stop VEVOR 7.5KW, 34A, 10HP VFD provides precise motor...
SKU: BPDSQ10HP0005U6U2V7
$246.99
Product Details
Wide-Range Variable Frequency Speed Control - For Stable Motor Start and Stop
VEVOR 7.5KW, 34A, 10HP VFD provides precise motor speed control via accurate frequency and amplitude of motor drive current. With easy wiring, a user-friendly panel, and a soft start/stop, it simplifies operations, enhances energy efficiency, and minimizes machinery faults.

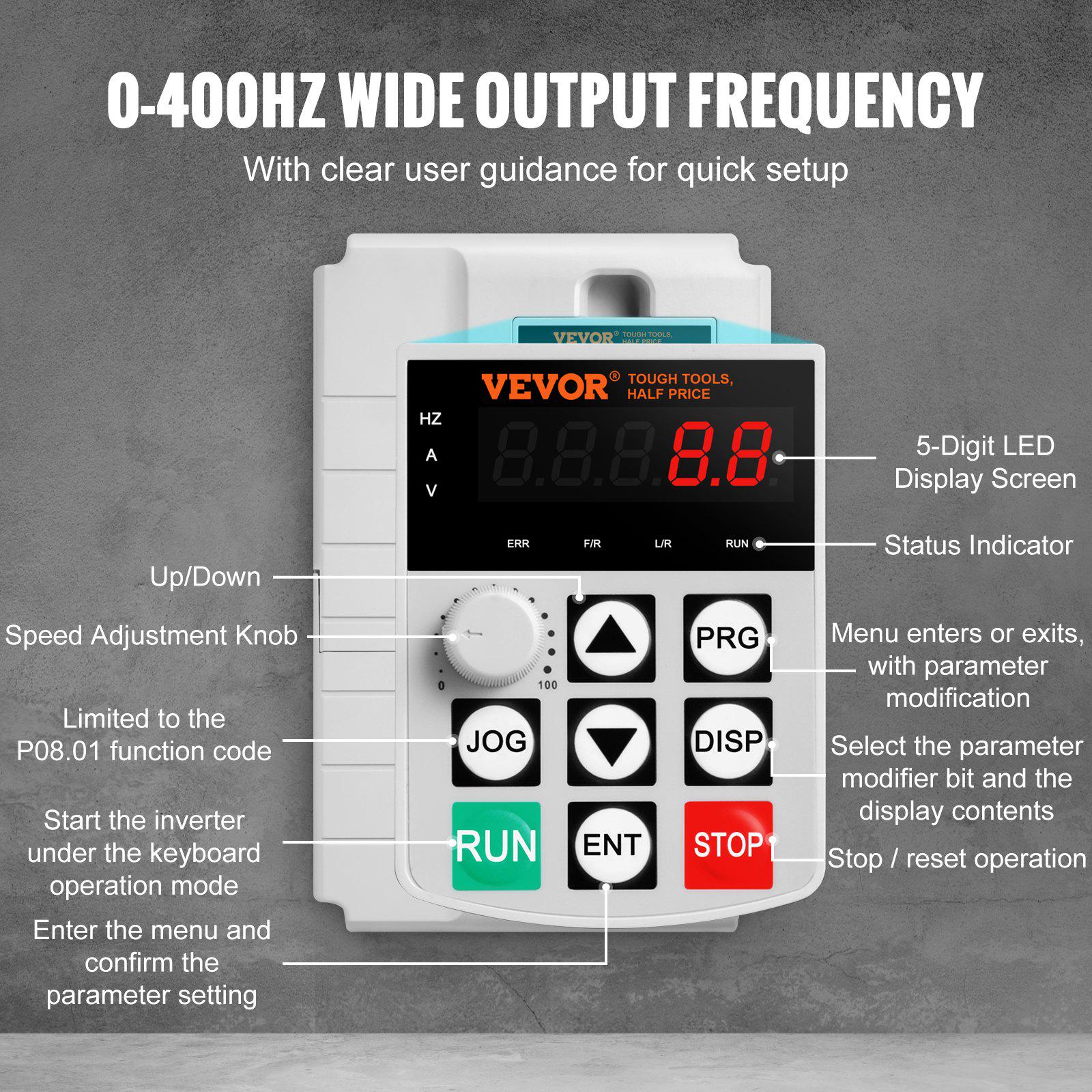

Operating Instructions: ?Press the programming key. ?Use the up/down and shift key to find the parameter. ?Press function/save to enter. ?Modify using up/down and shift key. ?Press function/save to save. ?Exit programming by pressing the programming key.
Our VFD comes with a 10-layer intelligent protection system, providing security against overcurrent, overload, overvoltage, and phase loss. The external casing is made of durable plastic, ensuring high performance and quality from the inside out, giving you peace of mind during use.
Stable and efficient operation relies on large cooling fans and a multi-hole heat dissipation design, preventing overheating and overloading during extended operation. Tips: Vertical installation is recommended to ensure effective heat dissipation.

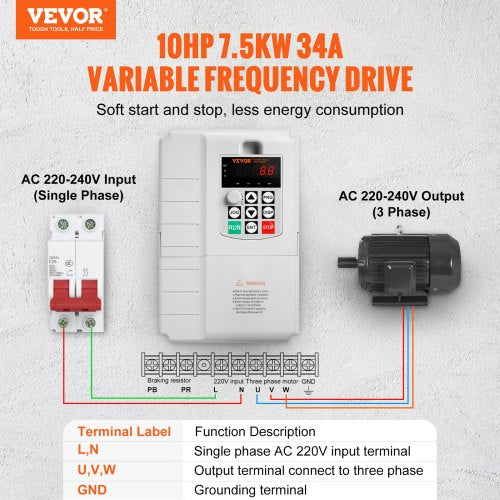

Installation Tips: ?Turn off power when connecting wires; never connect AC power to the motor output. ?For VFD protection, press red 'Stop' button and power off when not in use. ?External braking resistor is not supported. ?Avoid installation in humid or high-temperature environments
Specifications
