100 mm Milling Machine Rotary Table
Who is this for?
Suited to homeowners and renters looking for a milling machine rotary table for engineering & indexing. Check the stated 100 mm and 80 mm before ordering.
4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal...
SKU: YXZTLS4C100MYBJD9V0
$200.77
Product Details

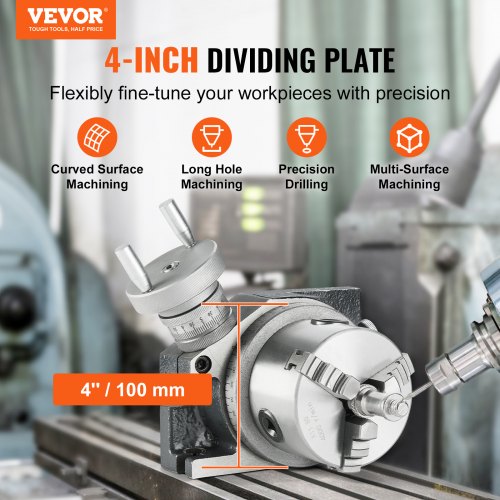

- 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines.
- It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling.
- Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.

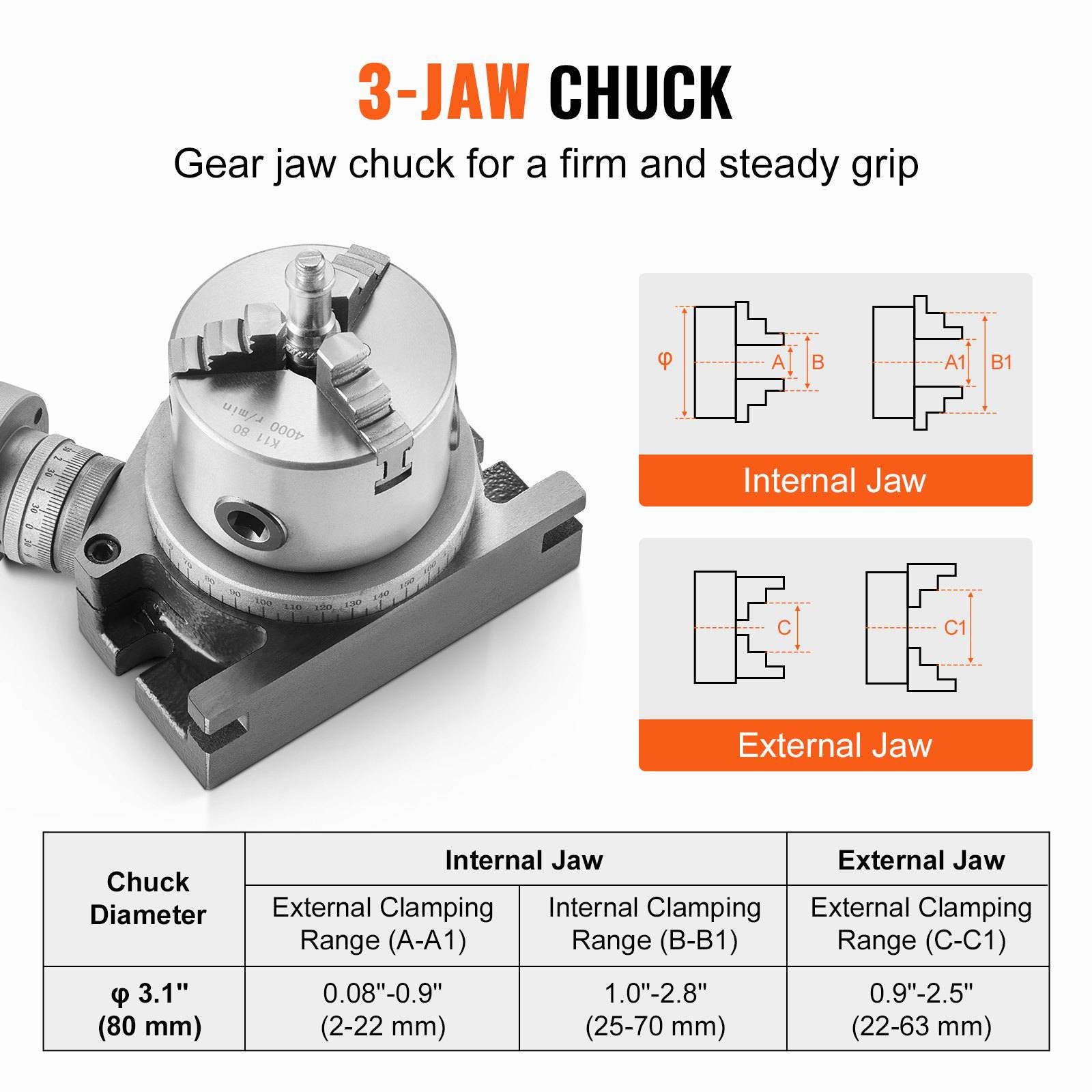

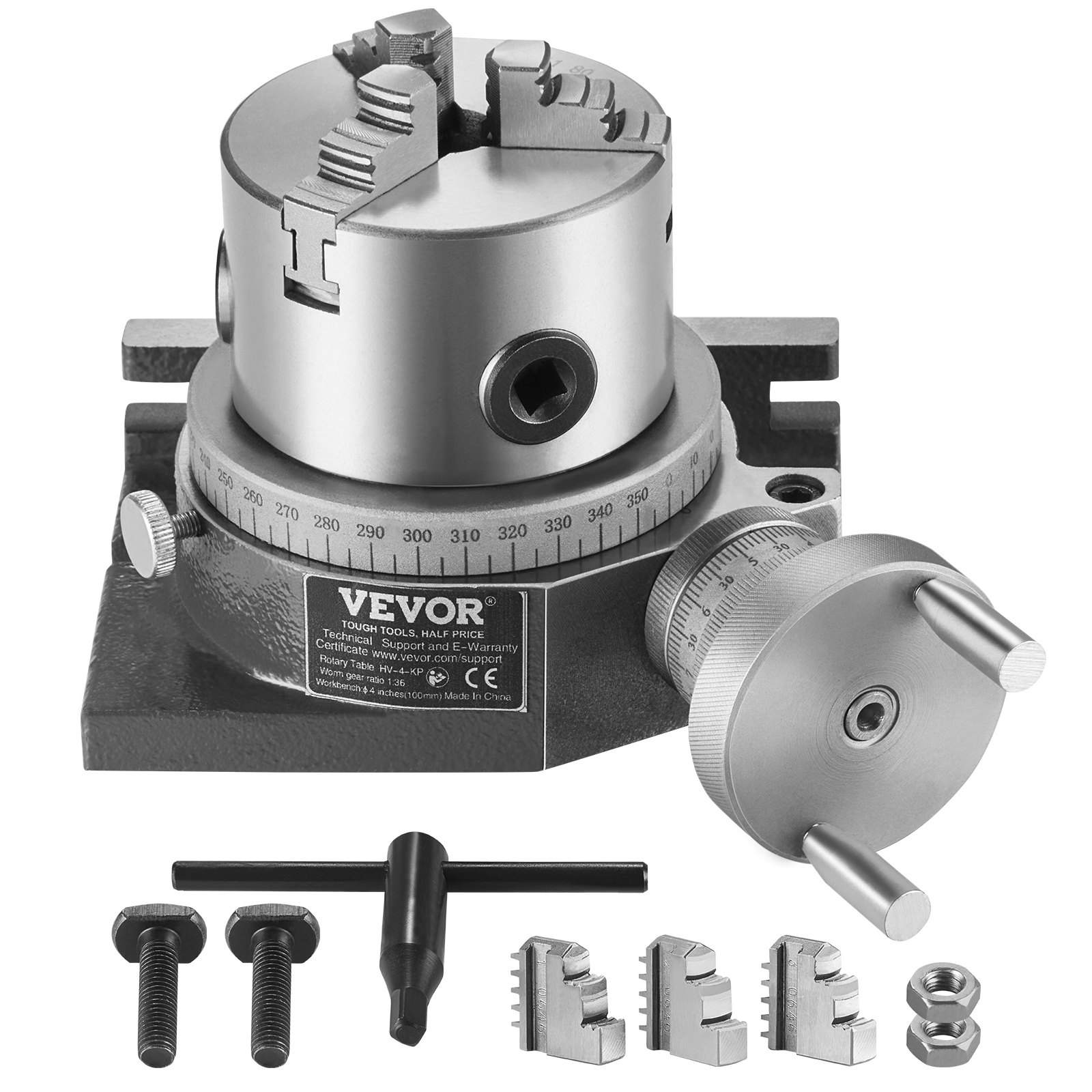

- Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces.
- Chuck Diameter: φ 3.1'' / 80 mm.
- The internal jaw can be used for internal & external clamping.
- External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm.
- It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm.
- Enjoy the precise and secure machining of small components!
- High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements.
- The handwheel scale number is 100, while the table itself is marked with 360 degrees.
- With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation.
- Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7'' / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2'' / 50 mm.
- Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights.
- Additionally, the table's bottom features positioning slots for easy and secure attachment to your milling machine.
- Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan.
- Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability.
- Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.
