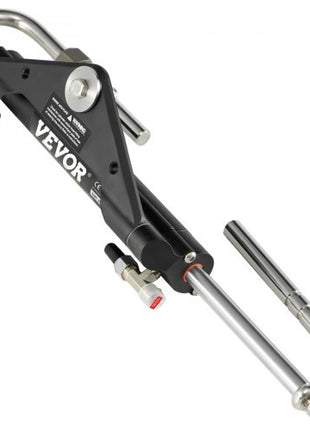

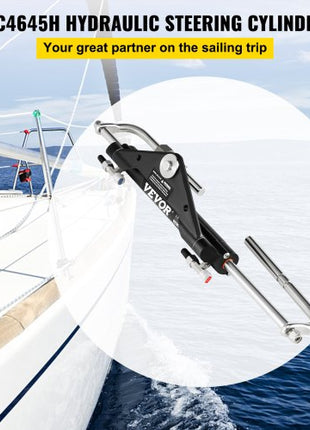

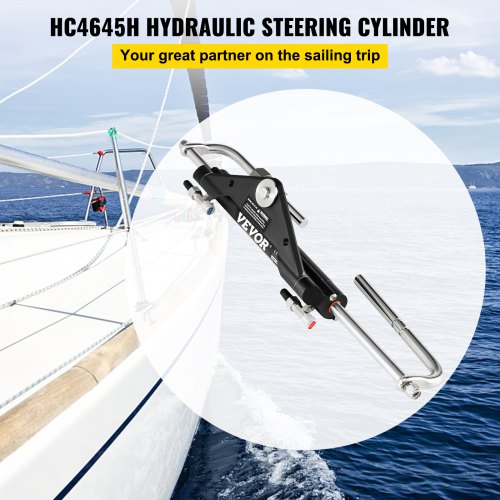

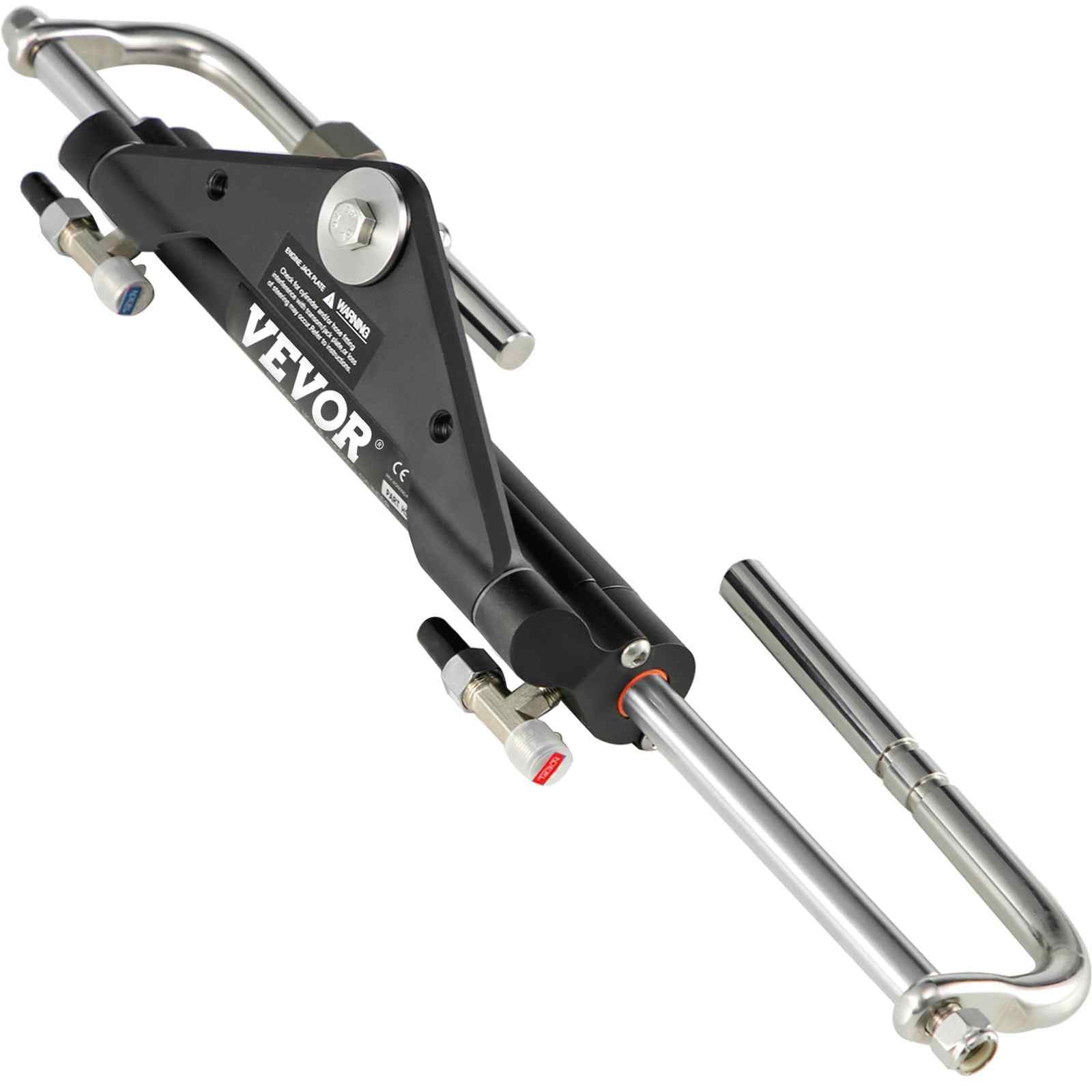

Hydraulic Steering Cylinder HC4645H Front Mount Hydraulic Outboard Marine Steering Cylinder Suit for Up to 150HP Boats Steering
Hydraulic Outboard Steering Cylinder HC4645H & Front Mount & Up to 150HP The hydraulic steering cylinder for single-outboard powered boats...
SKU: XWYYFXBHC4645HFXGV0
$247.99
Product Details
Hydraulic Outboard Steering Cylinder
HC4645H & Front Mount & Up to 150HP
The hydraulic steering cylinder for single-outboard powered boats rated up to 150 HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more.
-
HC4645H Front Mount Cylinder
-
Advanced Crush Resistance
-
Built-In Two-Way Lock
-
ORB Fitting
-
Sturdy Aluminum Alloy
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

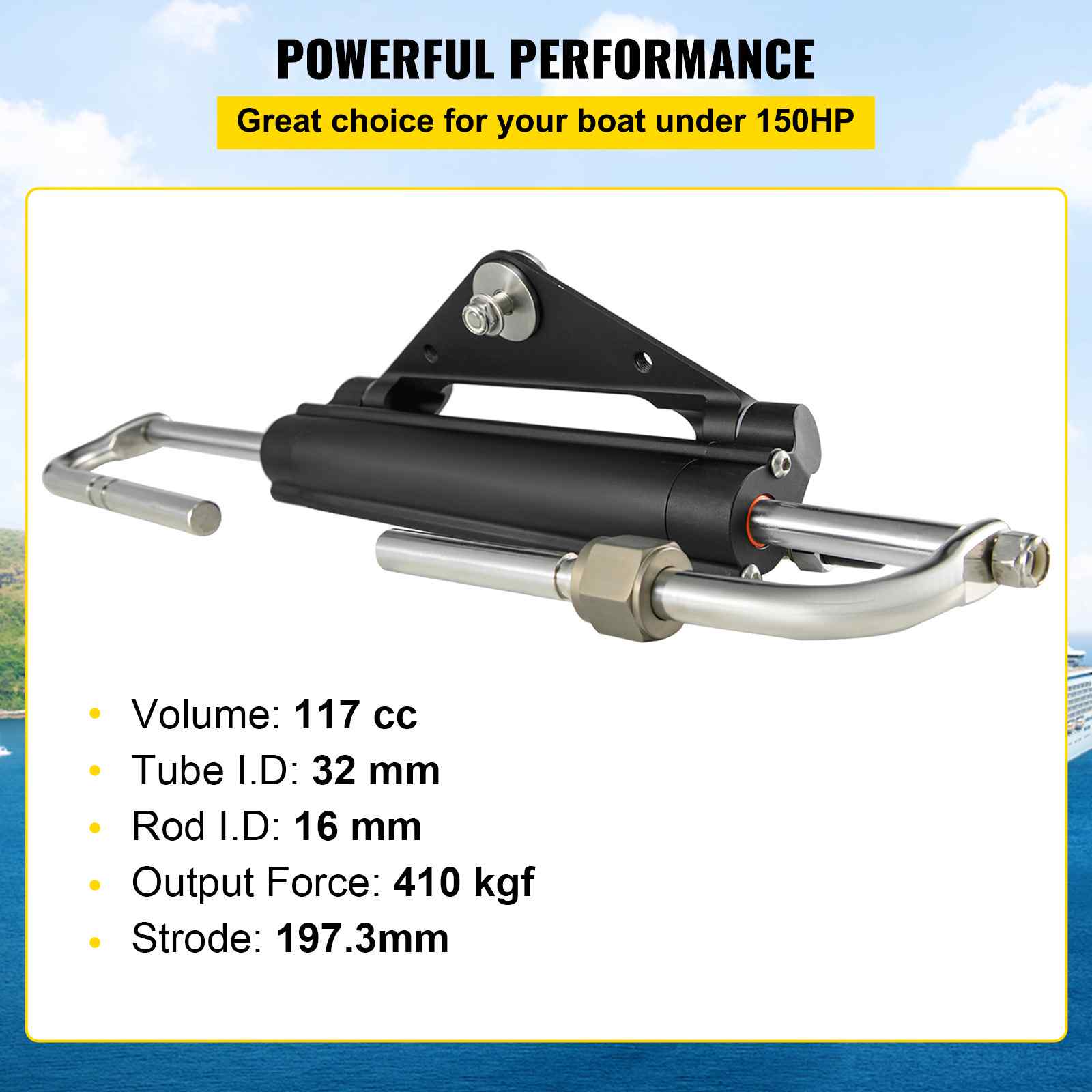

Powerful Performance
The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 150 HP.
Advanced Crush Resistance
The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.
Built-In Two-Way Lock
The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
Positionable O-Ring (ORB)
Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Aluminum Alloy Casing
High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.
Wide Application
The HC4645H steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.
Specifications
-
Cylinders: HC4645H
-
Applicable: Up to 150HP
-
Volume: 117CC
-
Tube I.D: 32mm
-
Rod I.D: 16mm
-
Output Force: 409.7kgf
-
Strode : 197.3mm
Package Content
-
1 x Outboard Steering Cylinder
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Hydraulic Outboard Steering Cylinder
HC4645H & Front Mount & Up to 150HP
The hydraulic steering cylinder for single-outboard powered boats rated up to 150 HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more.
- HC4645H Front Mount Cylinder
- Advanced Crush Resistance
- Built-In Two-Way Lock
- ORB Fitting
- Sturdy Aluminum Alloy
Powerful Performance
The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 150 HP.
Advanced Crush Resistance
The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.
Built-In Two-Way Lock
The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
Positionable O-Ring (ORB)
Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Aluminum Alloy Casing
High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.
Wide Application
The HC4645H steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.
Package Content
- 1 x Outboard Steering Cylinder
Specifications
- Cylinders: HC4645H
- Applicable: Up to 150HP
- Volume: 117CC
- Tube I.D: 32mm
- Rod I.D: 16mm
- Output Force: 409.7kgf
- Strode : 197.3mm
