4500PSI Double Acting Hydraulic Cylinder
Who is this for?
Suited to shoppers looking for a double acting hydraulic cylinder. Check the stated 4500PSI before ordering.
Key Specifications: Bore: 5 in (127 mm), Stroke: 20 in (508 mm), Retracted Length: 27.5 in (698.5 mm), Extended Length:...
SKU: CGSZYYYG5INCYN83Z001V0
$357.37
Product Details
- Key Specifications: Bore: 5 in (127 mm), Stroke: 20 in (508 mm), Retracted Length: 27.5 in (698.5 mm), Extended Length: 47.5 in (1206.5 mm), Port Size: SAE #6, Pin Hole Diameter: 0.63 in.
- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation.

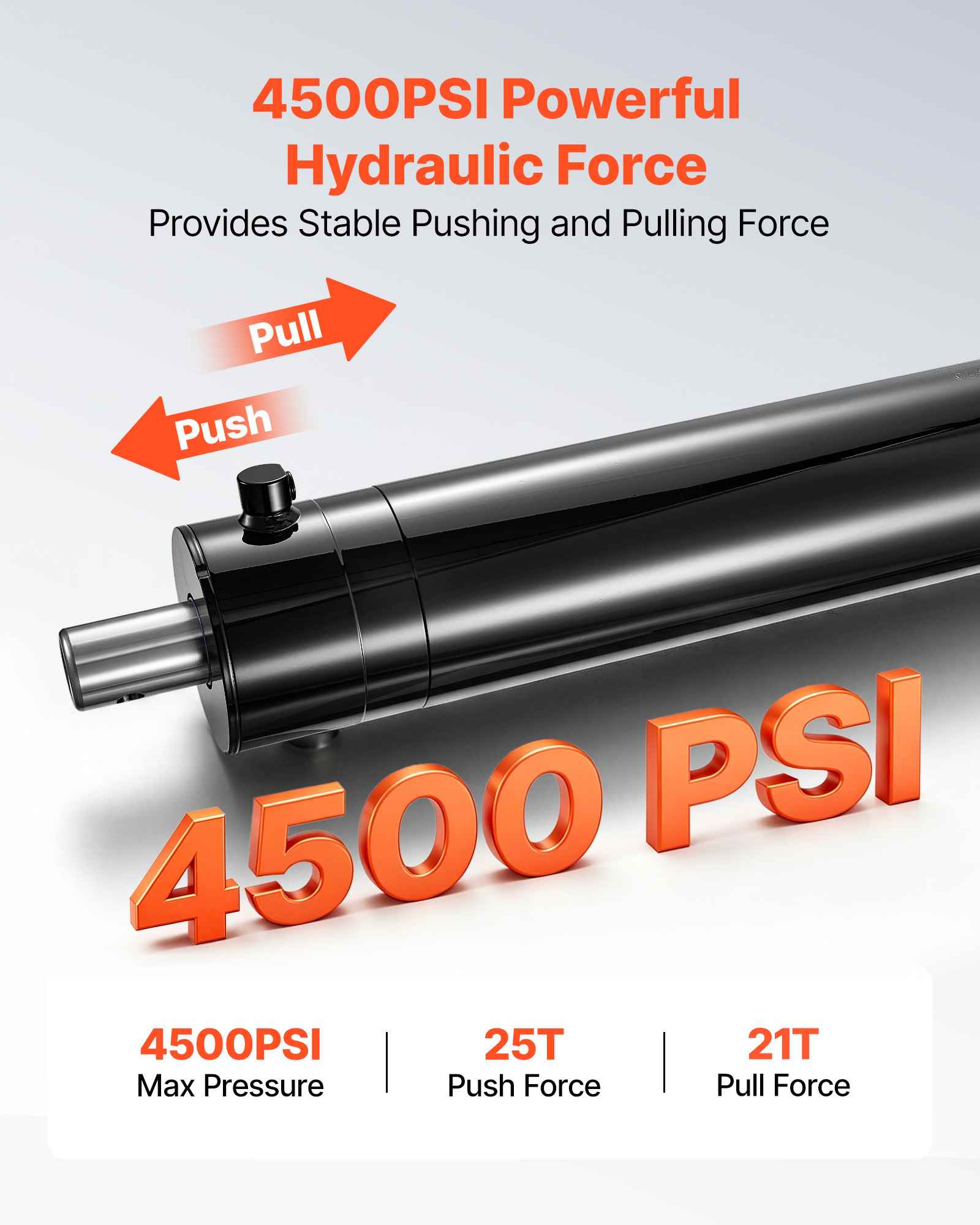

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 4500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency.
- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 28219 lbs (12.8 Ton) column load capacity while delivering 25 Ton push force and 21 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications.
- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions.
Specifications
Shipping & Returns
2-6 days: US Contiguous States
30 day NO Hassle Returns
