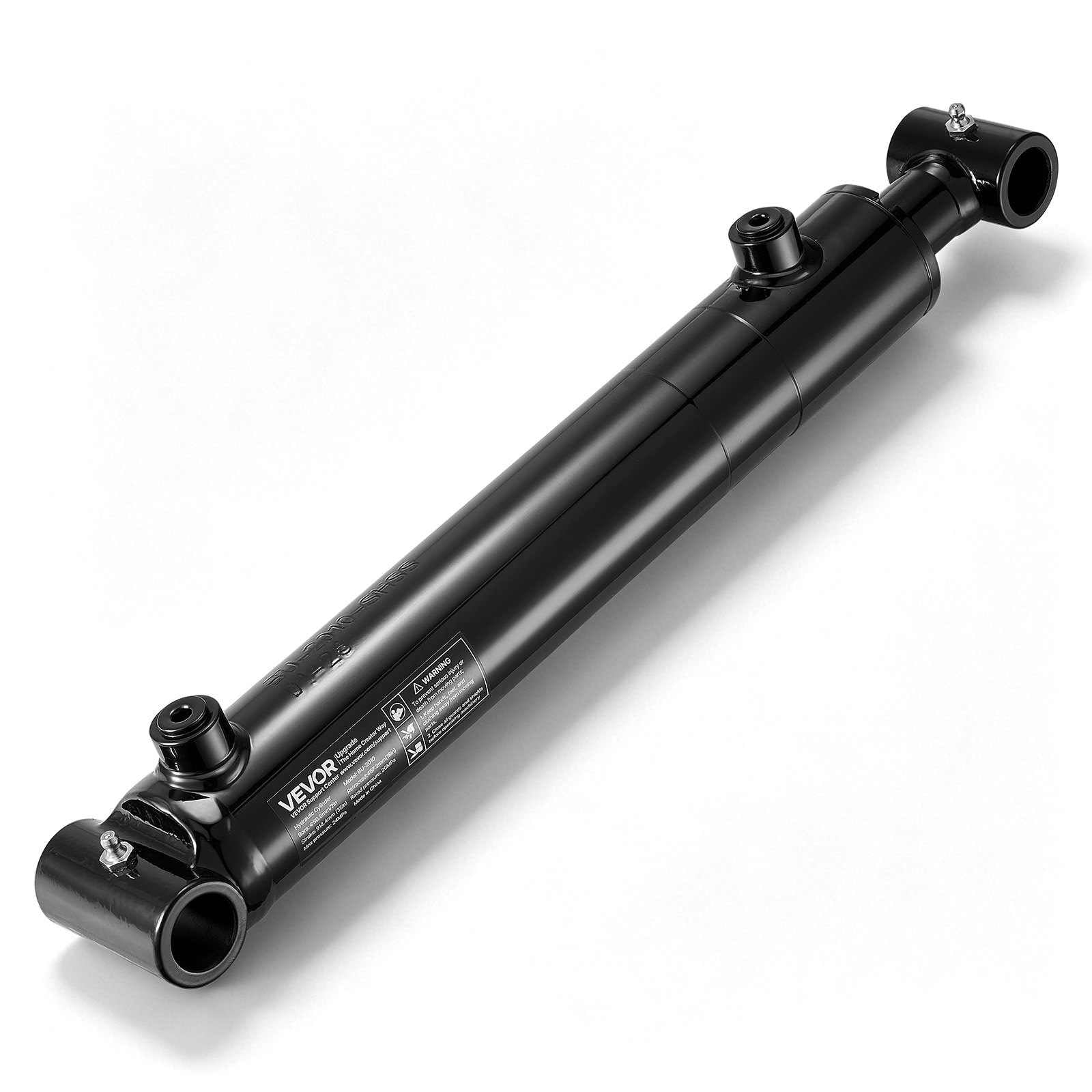

3500PSI Double Acting Hydraulic Cylinder
Who is this for?
Suited to shoppers looking for a double acting hydraulic cylinder. Check the stated 3500PSI before ordering.
Key Specifications: Bore: 2 in (50.8 mm), Stroke: 10 in (254 mm), Retracted Length: 18 in (457 mm), Extended Length:...
SKU: CGSZYYYG2INCLIZN9001V0
$170.27
Product Details
- Key Specifications: Bore: 2 in (50.8 mm), Stroke: 10 in (254 mm), Retracted Length: 18 in (457 mm), Extended Length: 28 in (711 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in.
- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation.
- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency.

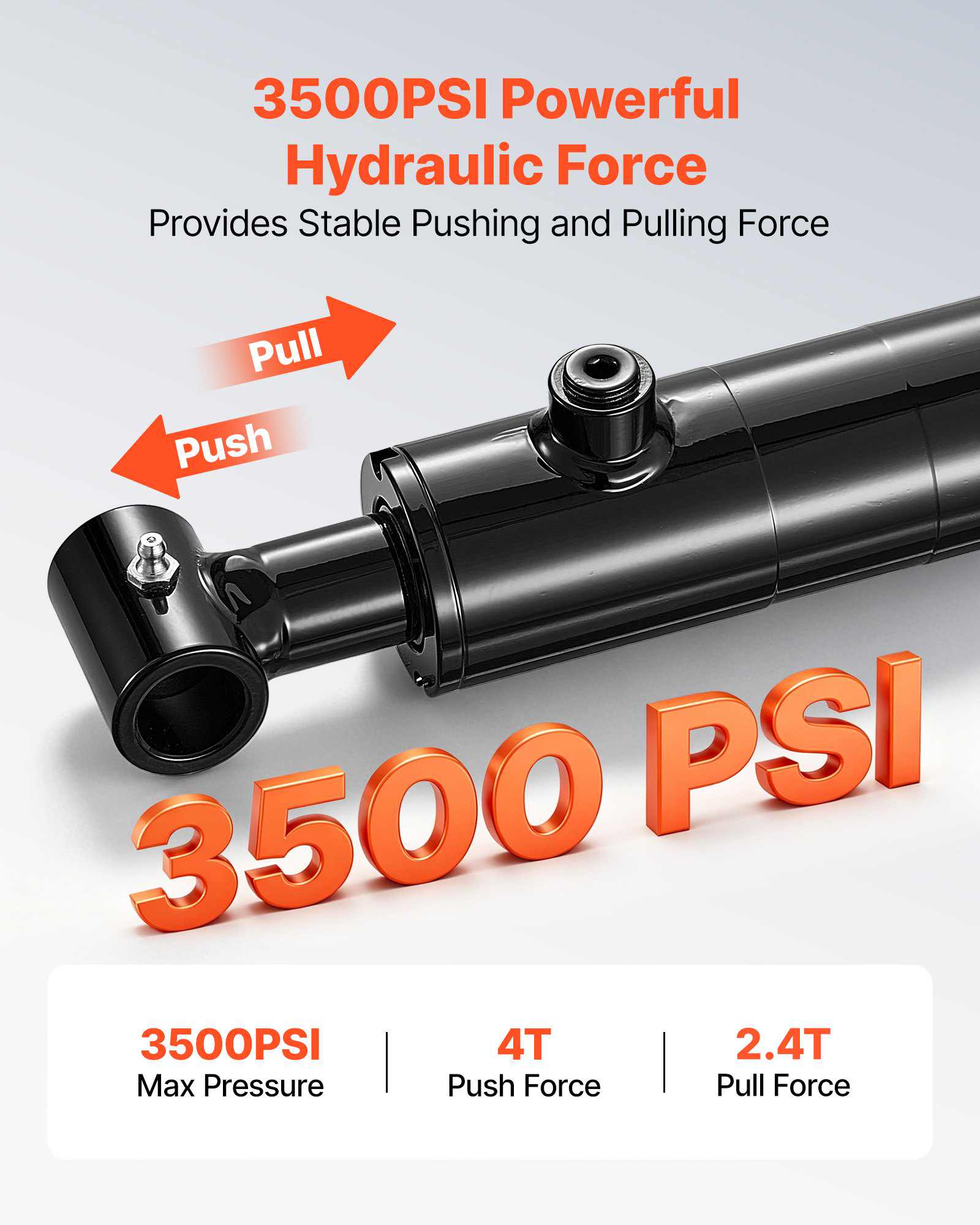

- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 8928 lbs (4 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications.
- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions.
Specifications
Shipping & Returns
2-6 days: US Contiguous States
30 day NO Hassle Returns
