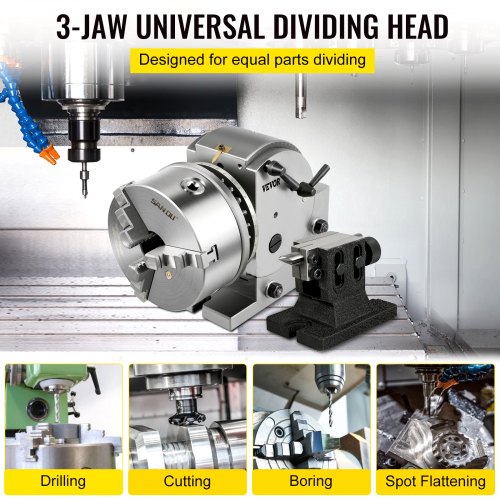

Dividing Head BS-1 Dividing Head Set 6\" 3-jaw Chuck Semi Universal Milling Set with 6\" Chuck+Tailstock+Dividing Plates for Milling Grinding Drilling Machine
6" / 160 mm Dividing Head for Milling Machine MT3 Headstock Taper & Complete Set & Simple Operation Semi-Universal Dividing...
SKU: FDTBS-1LYC0000001V0
$476.99
Product Details
6" / 160 mm Dividing Head for Milling Machine
MT3 Headstock Taper & Complete Set & Simple Operation
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing, and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexing. Attache 3 dividing plates and the dividing head indirect dividing in any division indexing 2-50.51-380.
-
Adjustable Angle
-
Solid Construction
-
Clear & Accurate
-
MT3 Tailstock Adjustable
-
Rich Dividing Head Set
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Adjustable 0°-90°
Vertical & horizontal milling machine with headstock chuck for the lathe. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm.
Ruggedly Constructed
Our universal dividing head features ruggedly constructed hardened and ground worm gear. The reduction ratio is 1:40.
Quick-dividing Design
Designed with a rotary table and indexing chuck for convenient operation, the 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
MT3 Tailstock Adjustable
The ball-bearing of this indexing head is of high precision and smooth turning. An extra dead center is provided for rapid use.
Universal 3 Plates
Our rotary indexer comes with 3 dividing plates of different sizes. The tool has easy indexing of divisions from 2 to 50, with most numbers up to 380.
Wide Application
The rotary indexer is ideal for various uses in milling, grinding, and drilling work.
Specifications
-
Chuck Diameter: 6" / 16 cm
-
Spindle Speed: 2500 RPM
-
Swing: 6-1/2" / 16.8 cm
-
Center Height: 5" / 12.8 cm
-
Reduction Ratio: 1:40
-
Tailstock: MT3
-
Net Weight: 77 lbs / 35 kg
-
Headstock Dimensions: 4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm
-
Tailstock Dimensions: 4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm

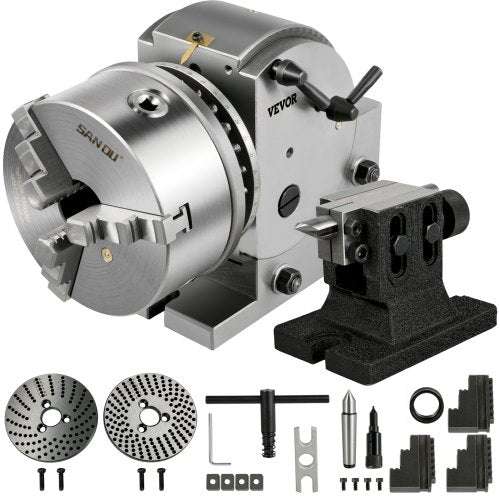

Package Content
-
1 x 6" Dividing Head
-
2 x Dividing Plates
-
3 x 6" Chuck Jaws
-
1 x Dead Center
-
1 x Tailstock
-
1 x Set of Related Accessories
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
6" / 160 mm Dividing Head for Milling Machine
MT3 Headstock Taper & Complete Set & Simple Operation
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing, and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexing. Attache 3 dividing plates and the dividing head indirect dividing in any division indexing 2-50.51-380.
- Adjustable Angle
- Solid Construction
- Clear & Accurate
- MT3 Tailstock Adjustable
- Rich Dividing Head Set
Adjustable 0°-90°
Vertical & horizontal milling machine with headstock chuck for the lathe. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm.
Ruggedly Constructed
Our universal dividing head features ruggedly constructed hardened and ground worm gear. The reduction ratio is 1:40.
Quick-dividing Design
Designed with a rotary table and indexing chuck for convenient operation, the 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
MT3 Tailstock Adjustable
The ball-bearing of this indexing head is of high precision and smooth turning. An extra dead center is provided for rapid use.
Universal 3 Plates
Our rotary indexer comes with 3 dividing plates of different sizes. The tool has easy indexing of divisions from 2 to 50, with most numbers up to 380.
Wide Application
The rotary indexer is ideal for various uses in milling, grinding, and drilling work.
Package Content
- 1 x 6" Dividing Head
- 2 x Dividing Plates
- 3 x 6" Chuck Jaws
- 1 x Dead Center
- 1 x Tailstock
- 1 x Set of Related Accessories
Specifications
- Chuck Diameter: 6" / 16 cm
- Spindle Speed: 2500 RPM
- Swing: 6-1/2" / 16.8 cm
- Center Height: 5" / 12.8 cm
- Reduction Ratio: 1:40
- Tailstock: MT3
Specifications
