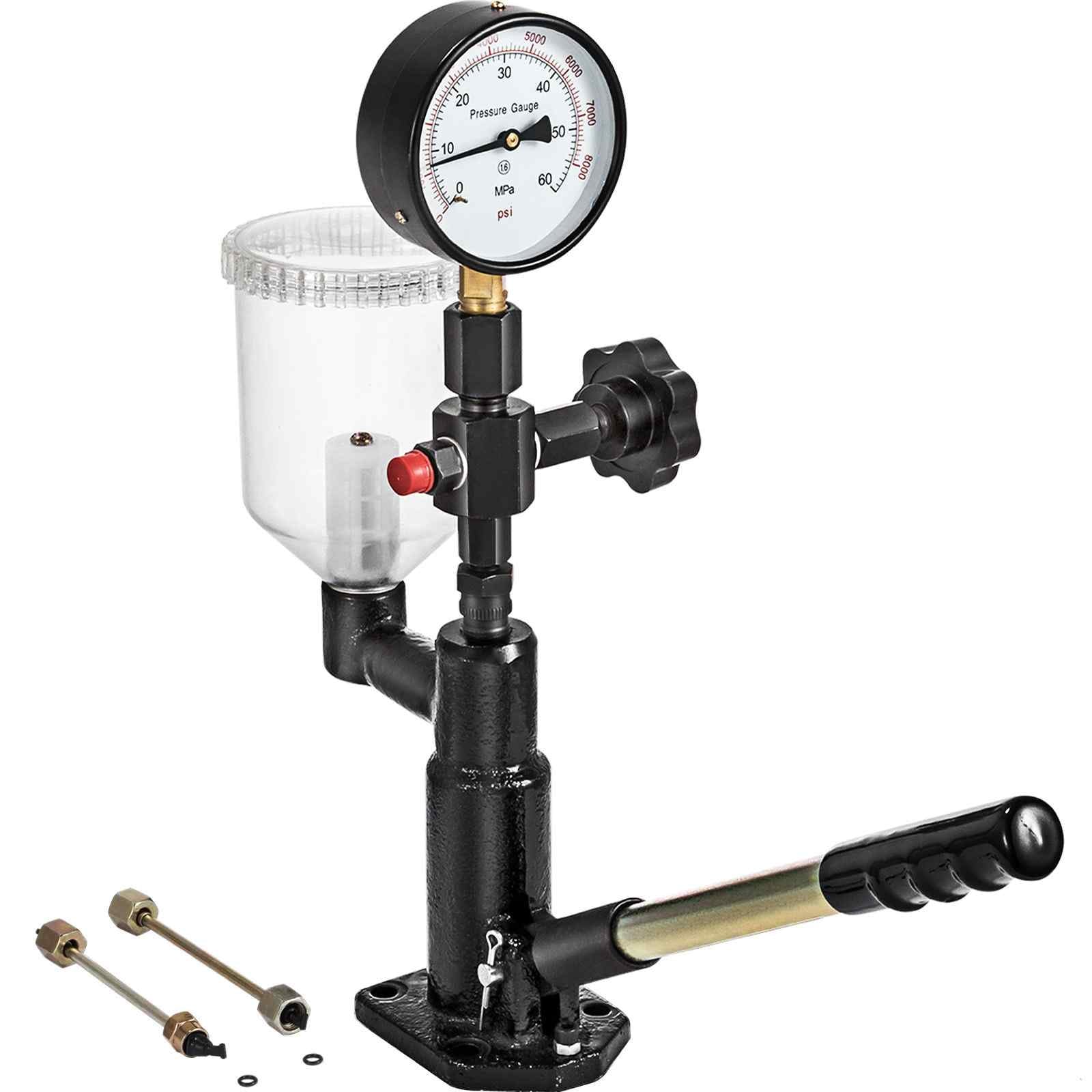

Premium Cast Iron: The diesel injector tester forged by high-quality cast iron, its durability and rigidity is dramatically increased. Consist of a plastic fuel cup to contain the fuel, and with a stainless pressure gauge to detect air pressure precisely.

Superior Tests Ability: The tool set is capable of accomplishing proper injection nozzle opening pressure test, leakage test, chattering test, an inspection of spray pattern, and Atomization.

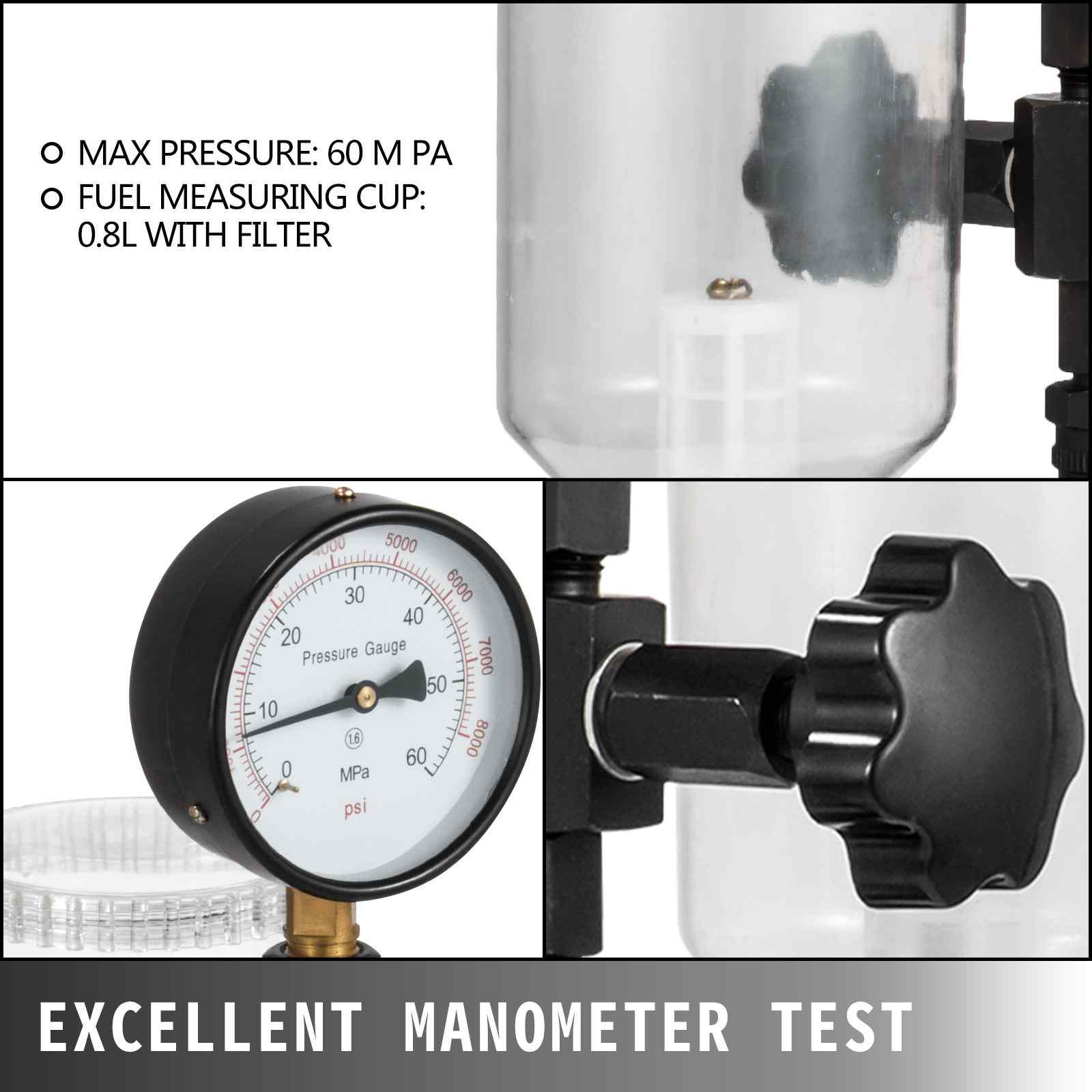

Large Measuring Range: With precision dual scale gauge, the measuring value range from 0-600 bar to 0-8000 psi, Max test pressure up to 60M Pa. (100 mm Dial, 3/8" BSP thread.)

Complete Accessories: The injector pop tester kit is equipped with 60MPa pressure gauge, handle, high-pressure pipes, A and B type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve.

Wide Application: Diesel fuel injector tester is ideal for calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) common rail diesel injectors.
