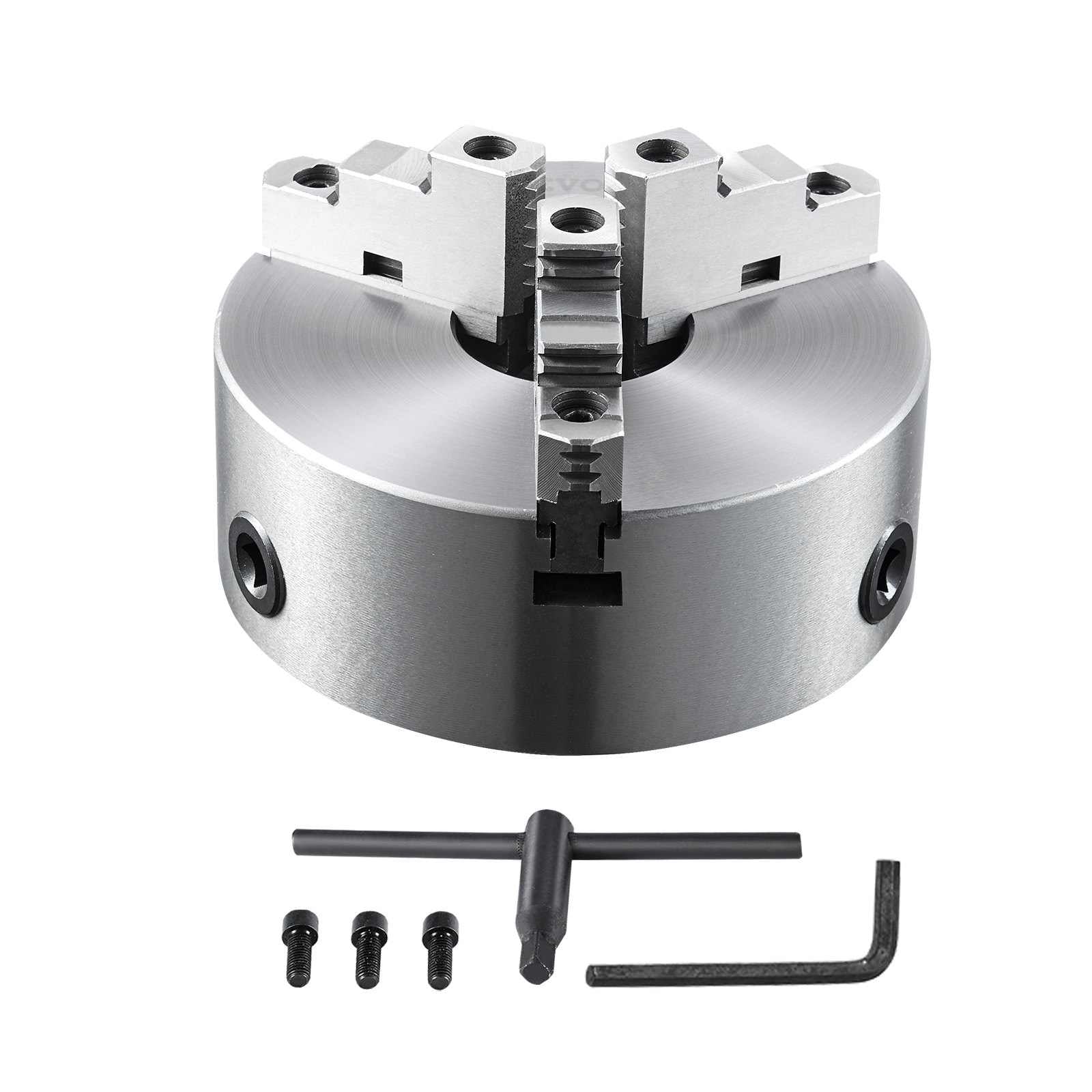

3-Jaw Lathe Chuck, 10'', Self-Centering Lathe Chuck, 0.24-9.84 in/6-250 mm Clamping Range with T-key Fixing Screws Hexagon Wrench, for Lathe 3D Printer Machining Center Milling Drilling Machine
Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and...
SKU: SZKP10YC3G00YQFFEV0
$220.87
Product Details
- Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness.
- The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
- High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck.
- The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress.
- Bearing tolerance is ≤0.05 mm / 0.002 in.
- Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw.
- The external jaws are capable of clamping larger-sized industrial parts.
- 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.
- Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability.
- The built-in self-centering function allows you to use it without repeated calibration.
- All you need to do is install it in the right order and use it with peace of mind.
- Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling.
- By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.
Specifications
